Manufacturer of CNC Angle Punching Shearing Machine

Manufacturer of CNC Angle Punching Shearing Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-03-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Jinan,China
  • Brand Name:  SOLTERRA
  • Model Number:  APL2020
  • Weight: 151000.000 kg

Features:

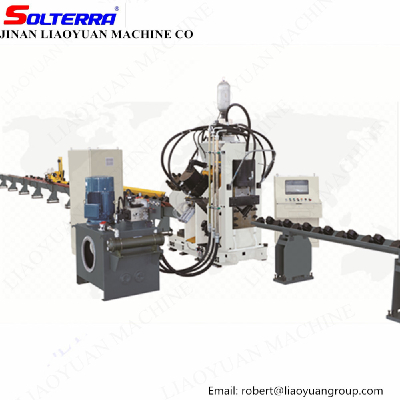

1.    The machine is professional automatic equipment for marking, punching and shearing of angle bar of power and telecommunication angle steel tower.

2.    The processing range of angle bar from L50x50x5 to L200x200x20, and length within 14000mm

3.    The production line includes 6 units: material-loading unit, feeding unit, main body, finished products conveyor unit (automatically tilting unloading system), hydraulic power unit & electric control unit.

4.    Double-rack feeding system ensures high level of accuracy.

5.    Hydraulic unit is equipped with two bladder accumulators therefore operation speed is drastically accelerated & high productivity also.

6.    Latest control software is installed on this equipment, which is simple for programming and management.

7.    Versatile triple tooling on both sides that is easy punches replaceable with different diameters. Marking system adopts a closed frame with good rigidity & realizes clearer marking.

8.    Four sets of character boxes are subject to change according to demands of customers.

9.    Stadia and hole distance can be adjusted through the movement of three CNC axis.

10.  The equipment adopts Numerical Control Technology. Driven by servo motor, marking, punching and double blade shearing are automatically operated with high efficiency as well as stable working accuracy.

11.  Many solutions are introduced to resolve problems such as infeed difficulty and stadia accuracy error which are caused by angle steel deformation.

12.  Friendly computer interface with English language can show the figures of work pieces, easy to operate.

13.  The system supports manual programming suitable for various work conditions.

14.  The key hydraulic, pneumatic & electrical elements are all famous-brand products, for example: Japan Yokogawa PLC, Japan Panasonic Servo Driver & motor, Italy ATOS Hydraulic Valve, France Schneider low-voltage electricity components & USA DENISON vane pump.


  • Place of Origin:  Jinan,China
  • Brand Name:  SOLTERRA
  • Model Number:  APL2020
  • Weight: 151000.000 kg

Model

APL-2020

Function

 Marking, Punching, Shearing

Angle Size

L50x 50 x 5 L200 x 200 x 20

Max. punching capability (Diameter x thickness)

Φ26 x 20 (mm)

Nominal punching force (KN)

1000

Marking force (KN)

550

Shearing force (KN)

1550

Max length of workpiece (m)

14

Max length of finished product (m)

12

Punchers number of each side (PCS)

3

Number of character group

4

Dimensions of character

14 x 10 x 19 (Customer Specified Size is available)

Max. Feeding speed (m/min)

60

Number of CNC axis

3

Cutting mode

Double-blade cutting

Programming model

Keyboard enter,USB interface input,Tower lofting software input

Overall dimensions (m)

32 x 7 x 2.6

Power

3-phase, 380V/50Hz, Customeried requirement is also available.

Gross weight (KGS)

Apr. 15500
